Guide to Assembling the Tamiya Double
Gearbox - 344.2:1 Gear Ratio
|
| Step
3 - Gearbox Housing |
Step 5 -
The Second Half |
|
Step 4 - The Remaining Gears
|
 If
you haven't installed the brass eyelets into the chassis, do so now (see
the picture).
Locate the yellow G2 Gear and place it on the hex
shaft so that the smaller gear fits against the blue G3 gear on the round
shaft.

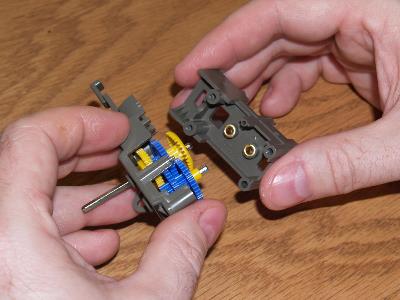

Put the outer chassis and middle chassis parts
together as shown in the picture. The round and hex shafts will fit into
the brass eyelets.
|

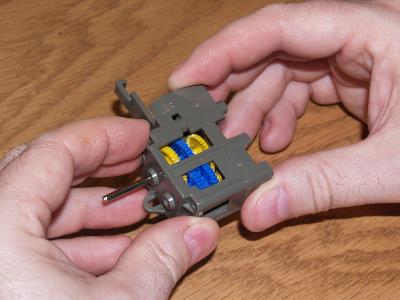

 Once
everything is lined up, the two chassis parts will fit snugly together
with no gaps in the seam between the 2 parts.
|
|

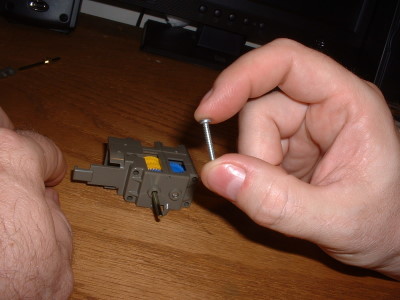

 Find
3 of the 18mm coarse threaded screws like the one shown in the picture.
|

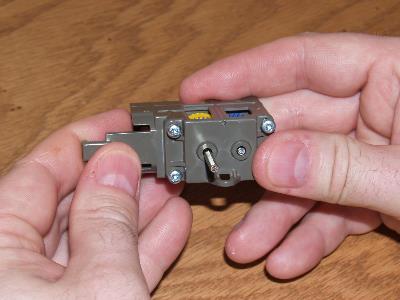

 Place
the 3 screws into the holes on the outside housing as shown in the
picture. There are actually 4 holes but only 3 will accept the screws. The
fourth hole is under my thumb in the picture. Tighten the screws to
hold the 2 parts together.
|
| |
| |
