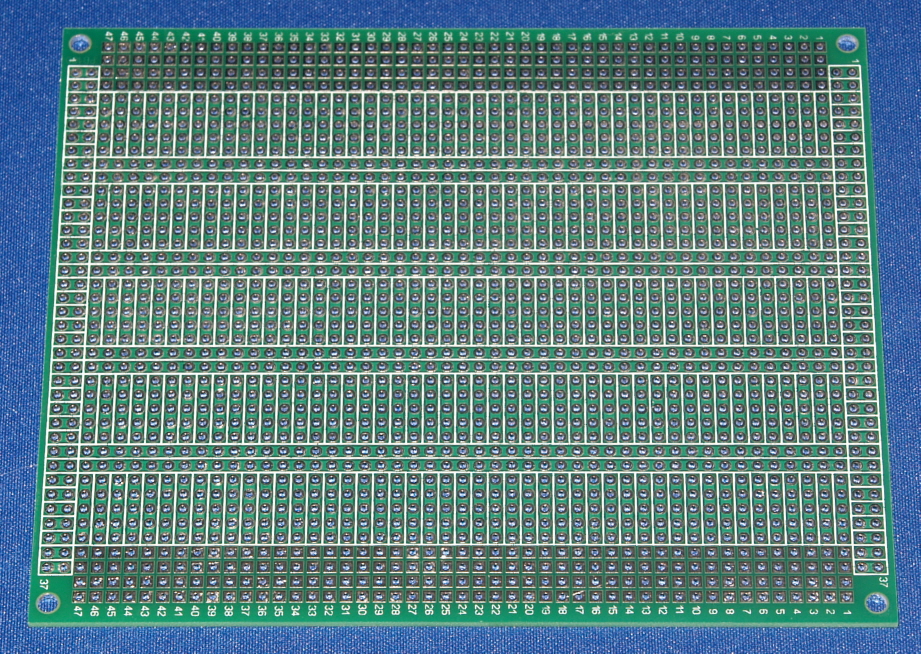

Protoboard 100, 2075 Holes

Protoboard 100, 2075 Holes

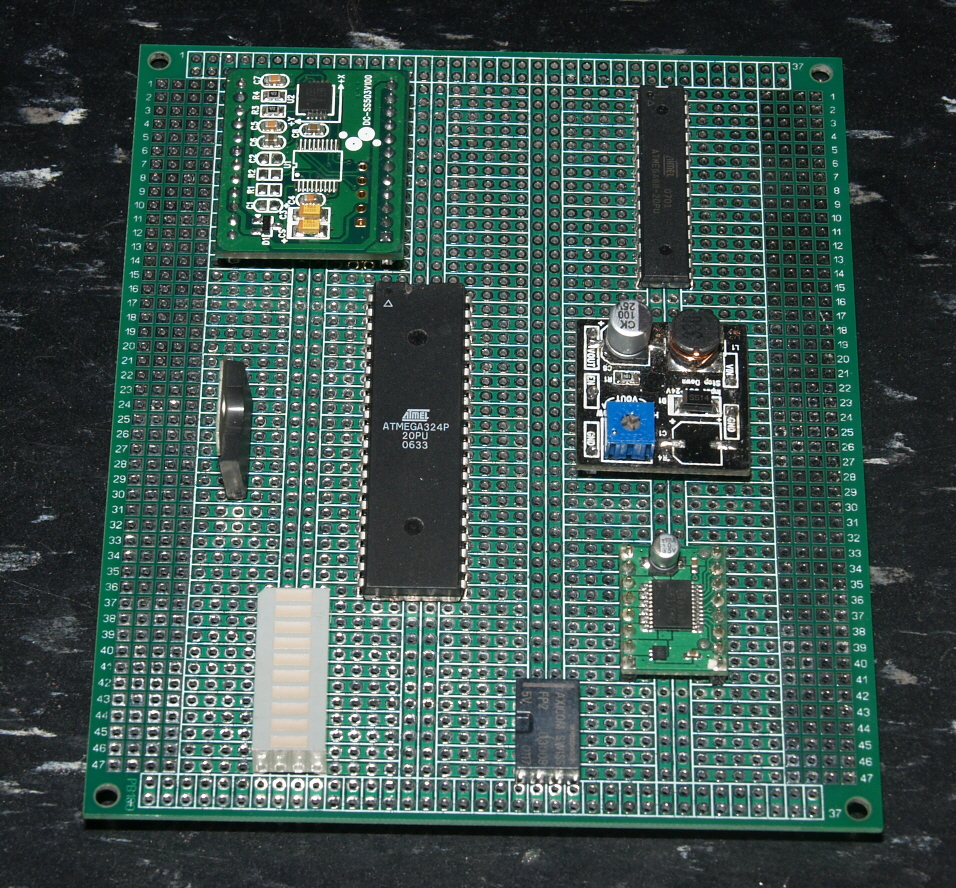

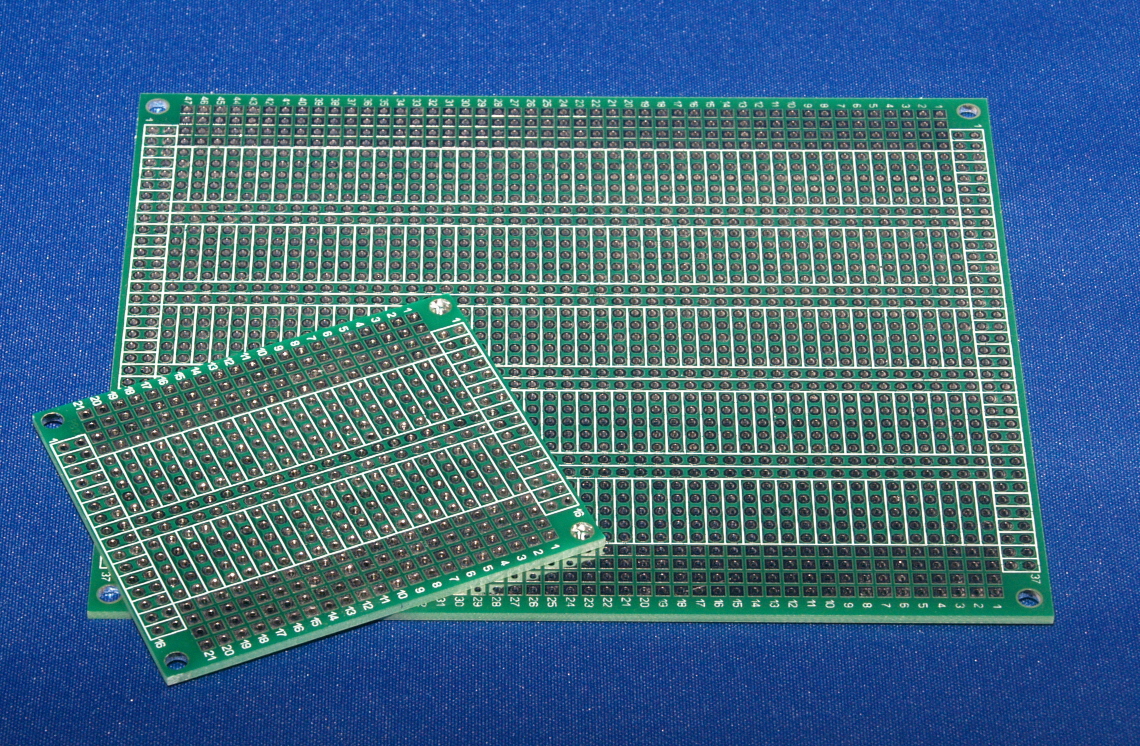

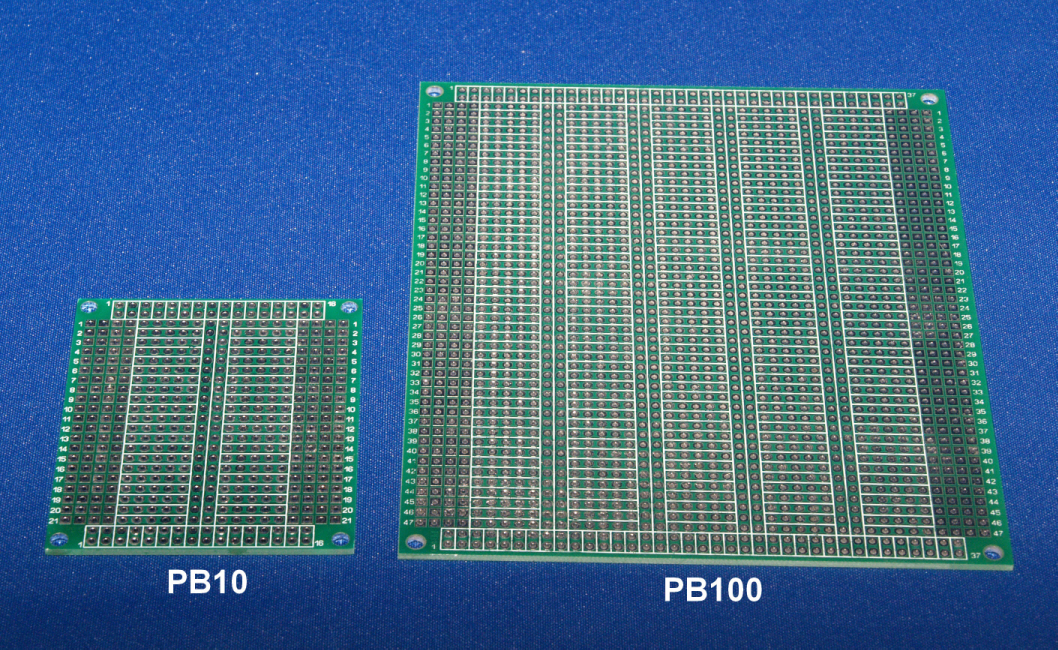

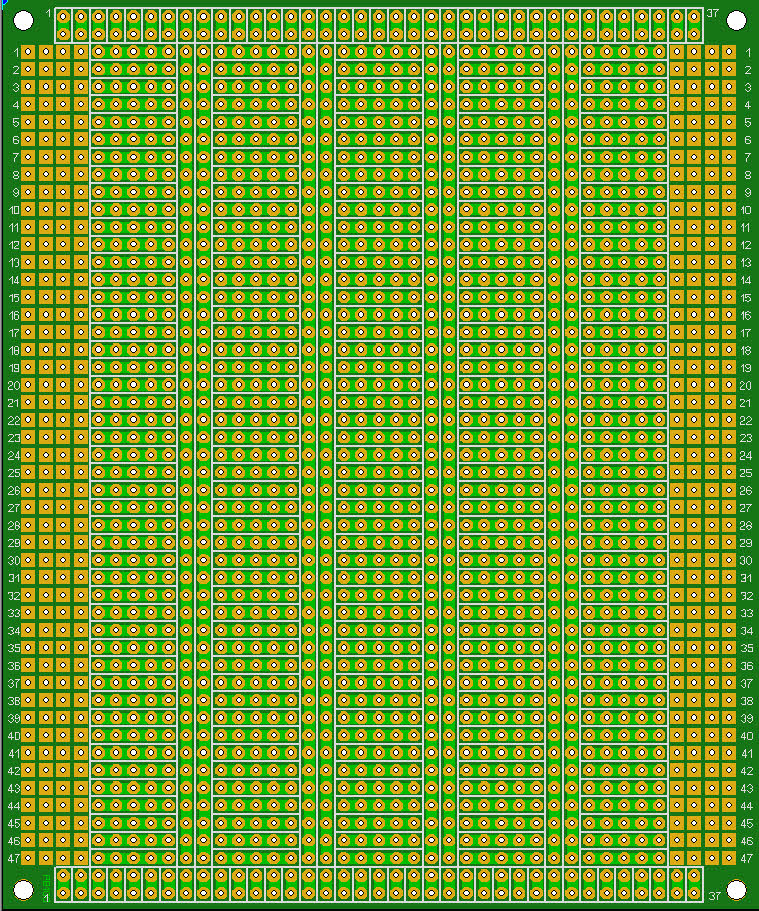

PB100 vs PB10 Comparison PB100 vs PB10 Comparison PB100 Layout PB100 Example

The PB100 is the newest member of our high quality protoboard family. The PB100 has a similar layout to the PB10 but with nearly 4 times the working area. The board is double-sided, allowing for components and solder joints on both sides of the board and all holes are plated through. The majority of pads are grouped in sets of 5 as you would see on a breadboard. The PB100 also includes 4 sets of dual power rails between the grouped pads. As with all of PB series protoboards, the PB100 has groups of single pads along two sides and paired pads along the other two sides to allow for easy creation of headers or interconnects.

Specifications:

  • Size: 5.25"x4.32" (132mmx110mm)
  • Mounting Holes: 4.96"x4.00" (126mmx101.6mm)
  • Material: FR2
  • Copper: 1oz Both Sides
  • Finish: HAL
  • Solder Mask: Green
  • Silk Screen: White
25%
Details
SKU PB100
Quantity in stock 71 item(s) available
Weight 0.15 lbs

Market price: $5.99
Our price: $4.49
